Asco - Van điện từ-3 Way 3/2-ASCO Series 321

THÔNG TIN CHI TIẾT

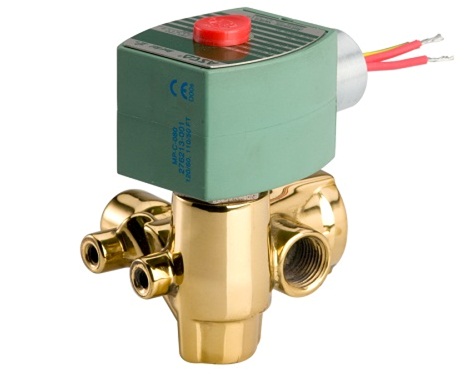

Van điện từ - 3 Way: 3/2 - ASCO Series 321

EF8321G001 120 / 60,110 / 50

Type: Solenoid Valve

Body Material:Brass

Media Type: Air, Inert Gas;Water;Light Oil

Valve Actuation:Solenoid

Voltage:110 AC;120 AC

Max Ops Pressure(PSI):200

Function:3 way - 3/2 Normally Closed

Pipe Size:1/4

Catalog Number:EF8321G001 120 / 60,110 / 50

General Information:

Product Weight:2.01 lb

Order Code:20779

Shipping Weight:2.09 lb

Catalog Page

Kit Number:302925

Listed In Catalog:34

Operating Pressure Ratings:    PSI

Operating Air Pressure (Min-Max):10-200

Operating Water Pressure (Min-Max):10-200

Operating Oil Pressure (Min-Max):10-200

Technical Information

Actuation Method:Solenoid

Body Material:Brass

Coil Class:FT

Coil Number:238214-032-D

I&M Pressure Vessel:

V_5417_R4.pdf

I&M Solenoid:

V_6583.pdf
V_6950_CH.pdf
V_6950_R8.pdf

Pipe or Port Size:1/4

Max Ambient Temperature:125.00 F

Min Ambient Temperature:32.00 F

Max Fluid Temperature:180.00 F

Orifice Size:9/32 in

Model Available:

EF8321G001 24/DC

EF8321G002 120/60,110/50

EF8321G002 24/DC

8321G002 120/60,110/50

-------------------------------------
