Van điện từ Asco -2 Way 2/2-ASCO Series 262

THÔNG TIN CHI TIẾT

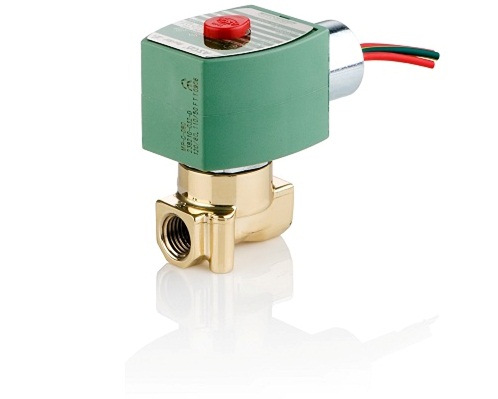

Van điện từ - 2 Way: 2/2 - ASCO Series 262

8262H022 120/60,110/50

Type:Solenoid Valve

Body Material:Brass

Media Type:Air, Inert Gas;Water;Light Oil

Valve Actuation:Solenoid - Direct Acting

Voltage: 110 AC;120 AC

Max Ops Pressure(PSI):90

Function:2 way - 2/2 Normally Closed

Pipe Size:1/4

Catalog Number:8262H022 120/60,110/50

General Information

Product Weight:1.01 lb

Order Code:21980

Shipping Weight:1.19 lb

Kit Number:323581

Operating Pressure Ratings:  PSI

Operating Air Pressure (Min-Max):-185

Operating Water Pressure (Min-Max):-180

Operating Oil Pressure (Min-Max):-90

Technical Information

Actuation Method:Solenoid - Direct Acting

Body Material:Brass

Coil Class:FT

Coil Number:238210-032-D

I&M Pressure Vessel:

V_9575_R7-sec1.pdf
V_9575_R7-sec2.pdf

I&M Solenoid:

V_6583.pdf
V_6950_CH.pdf
V_6950_R8.pdf

Pipe or Port Size:1/4

Max Ambient Temperature:131.00 F

Min Ambient Temperature:-13.00 F

Max Fluid Temperature:180.00 F

Min Fluid Temperature:-13.00 F

Orifice Size:1/8

Model Available:

8262H002 120/60,110/50

8262H114LT 120/60,110/50

8262H202 120/60,110/50

8262H208 120/60,110/50

8262H208V 120/60,110/50

-------------------------------------
