Van điện từ Asco-3 Way 3/2-ASCO Series 314

THÔNG TIN CHI TIẾT

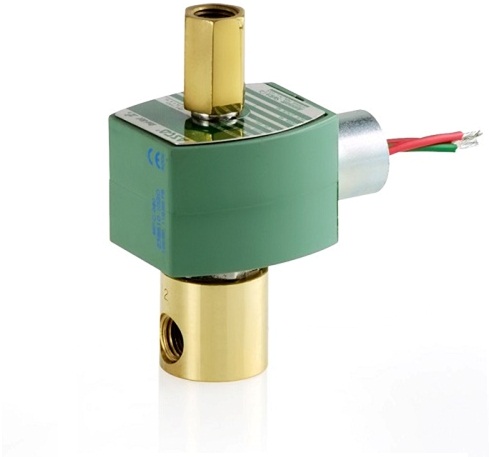

Van điện từ - 3 Way: 3/2 - ASCO Series 314

8314H036 120/60,110/50

Type:Solenoid Valve

Body Material:Brass

Media Type:Air, Inert Gas;Water;Light Oil

Valve Actuation:Solenoid - Direct Acting

Voltage:110 AC;120 AC

Max Ops Pressure(PSI):145

Function:3 way - 3/2 Normally Closed

Pipe Size:1/4

Catalog Number:8314H036 120/60,110/50

General Information

Product Weight:1.61 lb

Order Code:22110

Shipping Weight:1.68 lb

Kit Number:323958

Operating Pressure Ratings: PSI

Operating Air Pressure (Min-Max)-145

Operating Water Pressure (Min-Max)-145

Operating Oil Pressure (Min-Max)-100

Technical Information

Actuation Method:Solenoid - Direct Acting

Body Material:Brass

Coil Class:FT

Coil Number:238610-032-D

I&M Pressure Vessel

V_9599_R1.pdf

I&M Solenoid

V_6584_sec1.pdf
V_6584_sec2.pdf
V_6950_CH.pdf
V_6950_R8.pdf

Pipe or Port Size:1/4

Max Ambient Temperature:131.00 F

Min Ambient Temperature:-13.00 F

Max Fluid Temperature:200.00 F

Min Fluid Temperature:-13.00 F

Mounting Bracket(s):OPTIONAL

Orifice Size: 1/8

Model Available:

8314G300 24/DC

8314H008 120/60,110/50

8314H007 120/60,110/50

-------------------------------------
