Van điện từ Asco-4 Way 4/2-ASCO Series 344

THÔNG TIN CHI TIẾT

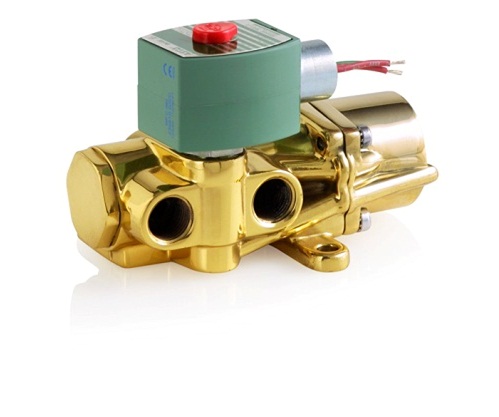

Van điện từ - 4 Way: 4/2 - ASCO Series 344

EF8344G072 120/60,110/50

Type:Solenoid Valve

Body Material:Brass

Media Type:Air, Inert Gas;Water;Light Oil

Valve Actuation:Solenoid - Direct Acting

Voltage:110 AC;120 AC

Max Ops Pressure(PSI):150

Function:4 way

Pipe Size:3/8

Catalog Number:EF8344G072 120/60,110/50

General Information

Product Weight:9.59 lb

Order Code:20859

Shipping Weight:9.68 lb

Kit Number:302711

Operating Pressure Ratings: PSI

Operating Air Pressure (Min-Max)10-150

Operating Water Pressure (Min-Max)10-125

Operating Oil Pressure (Min-Max)25-125
Technical Information

Actuation Method:Solenoid - Direct Acting

Body Material:Brass

Coil Class:FT

Coil Number:238614-032-D

I&M Pressure Vessel

V_5770.pdf

I&M Solenoid

V_6584_sec1.pdf
V_6584_sec2.pdf
V_6950_CH.pdf
V_6950_R8.pdf

Pipe or Port Size:3/8

Max Ambient Temperature:125.00 F

Min Ambient Temperature:32.00 F

Max Fluid Temperature:180.00 F

Orifice Size:3/8

Model Available:

8344G074 120/60,110/50

8344G074MO 120/60,110/50

EF8344G074 120/60,110/50

-------------------------------------
